Study summary (draft, October 2026)

Paediatric AI-ECG Potassium Study

We invite pediatric nephrology and cardiology teams to help test an adult AI-ECG potassium model in children.

Working title: External validation and adaptation of an adult AI-ECG potassium model in children: a multinational study.

In adults, the model is accurate

An AI-ECG model (ECG12Net) estimates serum potassium from a standard 12-lead ECG. Our collaborators at Tri-Service General Hospital and the National Defense Medical University, Taiwan, developed it from 66,321 emergency-department ECGs (Lin CS et al. JMIR Med Inform 2020 (opens in a new tab)).

In adults, it is accurate across settings, even at the extremes. Since 2020, the team has published at least seven original papers on this model.

In a test set of 13,222 ECGs, it flagged 95.6% of severe low potassium (≤2.5 mmol/L) as low, and 84.5% of severe high potassium (≥6.5 mmol/L) as high (Lin CS et al. JMIR Med Inform 2020 (opens in a new tab)).

Accuracy by potassium range Adapted from the ECG12Net development paper, test set of 13,222 ECGs. Each column is one range of laboratory potassium; each row is one range of the ECG estimate, in mmol/L. Each column adds to 100%. Same-range cells: 2.5 or less, 61%; 2.5 to 3.5, 43%; 3.5 to 5.5, 76%; 5.5 to 6.5, 34%; 6.5 or more, 46%. In the lowest column, 96% of estimates are 3.5 or less. In the highest column, 85% of estimates are 5.5 or more. ≤2.5 2.5– 3.5 3.5– 5.5 5.5– 6.5 ≥6.5 ≥6.5 0% <1% <1% 7% 46% 5.5–6.5 0% <1% 5% 34% 38% 3.5–5.5 4% 50% 76% 54% 13% 2.5–3.5 35% 43% 18% 4% 1% ≤2.5 61% 6% <1% 0% 1% Accuracy by potassium range Adapted from the ECG12Net development paper, test set of 13,222 ECGs. Each column is one range of laboratory potassium; each row is one range of the ECG estimate, in mmol/L. Each column adds to 100%. Same-range cells: 2.5 or less, 61%; 2.5 to 3.5, 43%; 3.5 to 5.5, 76%; 5.5 to 6.5, 34%; 6.5 or more, 46%. In the lowest column, 96% of estimates are 3.5 or less. In the highest column, 85% of estimates are 5.5 or more. ≤2.5 2.5–3.5 3.5–5.5 5.5–6.5 ≥6.5 ≥6.5 0% <1% <1% 7% 46% 5.5–6.5 0% <1% 5% 34% 38% 3.5–5.5 4% 50% 76% 54% 13% 2.5–3.5 35% 43% 18% 4% 1% ≤2.5 61% 6% <1% 0% 1%
Columns: laboratory potassium. Rows: ECG estimate. Both in mmol/L. Each column adds to 100%; outlined cells are the same range. Test set, 13,222 ECGs. Adapted from Lin CS et al. JMIR Med Inform 2020, Figure 3A (CC BY 4.0).

During treatment, the ECG follows potassium

Our study showed that, during treatment of severe hypokalemia, the ECG follows the potassium trend in real time. The estimate is ready as soon as the ECG is recorded.

During treatment: the ECG and blood tests follow the same trend Illustration, not patient data. Dots are ECG estimates of potassium, one per ECG. Hollow squares are blood tests: fewer, and each result arrives some time after the sample is taken. Both follow the same trend. Potassium starts below 3.5 mmol/L and rises during correction, then rebounds suddenly above 5.5 mmol/L. A blood test confirms it, then the team treats. One dot = one ECG estimate Blood test, reported later 5.5 mmol/L 3.5 mmol/L Sudden rebound Time Blood test confirms, then treat During treatment: the ECG and blood tests follow the same trend Illustration, not patient data. Dots are ECG estimates of potassium, one per ECG. Hollow squares are blood tests: fewer, and each result arrives some time after the sample is taken. Both follow the same trend. Potassium starts below 3.5 mmol/L and rises during correction, then rebounds suddenly above 5.5 mmol/L. A blood test confirms it, then the team treats. One dot = one ECG estimate Blood test, reported later 5.5 mmol/L 3.5 mmol/L Sudden rebound Time Blood test confirms, then treat
Illustration, not patient data.

In 191 adults with severe hypokalemia, the ECG estimate tracked laboratory potassium within each patient (repeated-measures correlation 0.847; AUC 0.920). It was available a mean of 52.5 minutes before the laboratory report (Ding JJ et al. Am J Kidney Dis 2026 (opens in a new tab)).

In 2 patients whose potassium rebounded above the normal range during correction, the ECG flagged the rebound a mean of 41.6 minutes before the laboratory report.

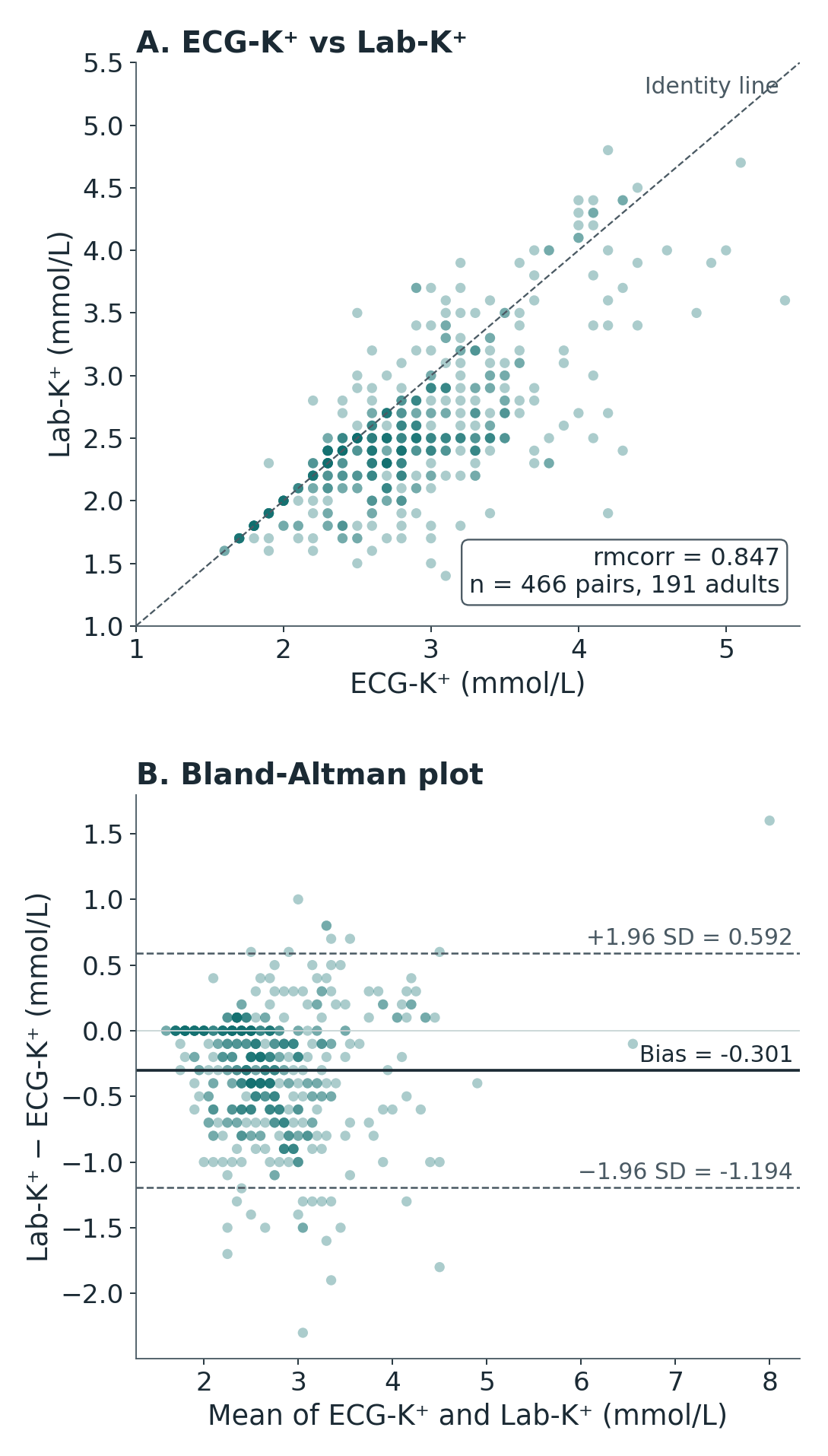

Panel A: scatter plot of laboratory potassium against the ECG estimate, 466 pairs from 191 adults, with the identity line; repeated-measures correlation 0.847. Panel B: Bland-Altman plot; mean difference, laboratory minus ECG, -0.301 mmol/L; limits of agreement -1.194 to 0.592 mmol/L.
Adapted from Figure 2 of Ding JJ et al. Am J Kidney Dis 2026, by the authors; acute and chronic causes pooled. A: ECG estimate and laboratory potassium, 466 pairs from 191 adults during treatment. B: Bland-Altman plot.

Adult research has come this far. What about children?

To our knowledge, no deep-learning potassium model has been validated in children. The pediatric ECG differs from the adult ECG. Each centre sees few hypokalemic children, and severe values are rarer still. Pooling across centres is therefore necessary.

Why we pool across centres Illustration, not site data. Four centres, each with only a few hypokalemic children, shown as dots. Arrows lead from every centre into one pooled dataset: at least 150 hypokalemic and 450 normokalemic ECGs across all sites. Centre 1 Centre 2 Centre 3 Centre 4 Pooled across all sites At least 150 hypokalemic ECGs and 450 normokalemic ECGs Why we pool across centres Illustration, not site data. Four centres, each with only a few hypokalemic children, shown as dots. Arrows lead from every centre into one pooled dataset: at least 150 hypokalemic and 450 normokalemic ECGs across all sites. Centre 1 Centre 2 Centre 3 Centre 4 Pooled across all sites At least 150 hypokalemic and 450 normokalemic ECGs
Illustration, not site data. Each centre sees few hypokalemic children; pooled, the sites reach the target.

The proposed study: we start from the adult model

  • Step 1A (retrospective): apply the adult model, unchanged, to existing pediatric ECGs. Children aged 28 days to 17 years; records from 2019 to 2025; a digital 12-lead ECG with a laboratory serum or plasma potassium within 60 minutes. Main outcome: accuracy for potassium <3.5 mmol/L, by age band (<1, 1–11, 12–17 years) and by cause (acute shift or chronic deficit).
  • Step 1B (only if needed): transfer learning. We fine-tune the adult model with the pooled pediatric data, and test it on a site that it has not seen. Our hypothesis is that this needs fewer pediatric cases than a new model.
  • Step 2 (later, under a separate protocol): prospective monitoring during potassium correction.
The three steps Step 1A (retrospective): apply the adult model, unchanged, to existing pediatric ECGs. Step 1B (only if needed): transfer learning from the adult model, then a test on a site that it has not seen. Step 2 (later, under a separate protocol): prospective monitoring during potassium correction. Step 1A Retrospective Apply the adult model, unchanged, to existing pediatric ECGs Step 1B Only if needed Transfer learning from the adult model; test on an unseen site Step 2 Later, under a separate protocol Prospective monitoring during potassium correction The three steps Step 1A (retrospective): apply the adult model, unchanged, to existing pediatric ECGs. Step 1B (only if needed): transfer learning from the adult model, then a test on a site that it has not seen. Step 2 (later, under a separate protocol): prospective monitoring during potassium correction. Step 1A Retrospective Apply the adult model, unchanged, to existing pediatric ECGs Step 1B Only if needed Transfer learning from the adult model; test on an unseen site Step 2 Later, under a separate protocol Prospective monitoring during potassium correction
The three steps. Step 1B runs only if needed; Step 2 comes later, under a separate protocol.

What a site does in Step 1

  1. Obtains local ethics approval.
  2. Removes names, ID numbers and all dates before any data leave the hospital.
  3. Sends the de-identified data by secure transfer.

The analysis runs centrally in Taiwan. Nothing needs to be installed at your hospital. Each site receives the results for its own ECGs.

Target

At least 150 hypokalemic and 450 normokalemic ECGs in total, pooled across all sites. There is no quota for any single site.

To be agreed with participating sites

The data transfer agreement, authorship rules (ICMJE criteria), the pre-specified success criteria, and the timeline.

Survey opens soon — email us

Email: jamesdin1124@gmail.com

We will contact interested teams to finalize the protocol together.

Publications

Contact

Jhao-Jhuang Ding, MD — Division of Pediatric Nephrology, Chang Gung Memorial Hospital, Linkou, Taiwan — jamesdin1124@gmail.com
